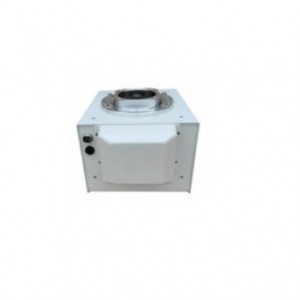

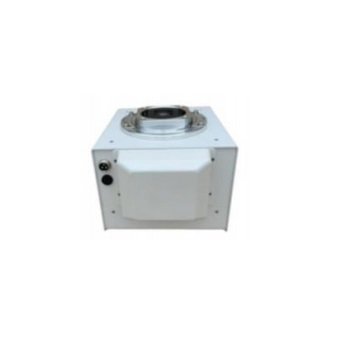

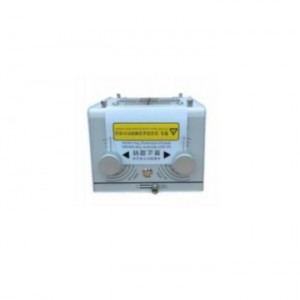

NK-R102NC X-ray Collimator | 150kV Manual & Electric Beam Limiter
Short Description:
The NK-R102NC collimator is a high-performance beam limiter designed to pair with fixed X-ray machines. It is compatible with X-ray tubes up to a maximum tube voltage of 150KV, helping operators precisely control the X-ray radiation field for safer and more accurate radiography.
This collimator is mainly supporting equipment for fixed X-ray systems. It limits the scope of X-ray emission, reduces unnecessary radiation exposure to patients, and aligns the light field with the X-ray field for convenient positioning before exposure.
Core Specifications
Max X-ray tube voltage: 150KV
Max radiation field (SID = 65cm): ≤ 35cm × 35cm
Minimum radiation field: ≤ 5cm × 5cm
Lead leaf control: Manual & Electric dual control mode
Illuminance (at SID = 100cm): ≥100lx; the contrast at the light field edge is no less than 4
Dual control mode (manual + electric) brings flexible adjustment for different operation habits.
Stable LED light source provides clear light field positioning to simplify patient placement.
Multiple aluminum filter plates are available to adjust beam quality for diversified clinical shooting demands.
Compact structure with customizable installation size, easy to integrate into existing fixed X-ray units.
Built-in light timing function avoids long-time continuous lighting and extends LED service life.
Suitable Scenarios
It is widely matched with stationary radiography equipment in clinics and imaging departments. It effectively restrains scattered rays, improves image quality, and lowers redundant radiation dose, complying with international radiological protection requirements.
