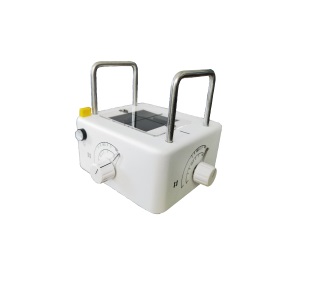

The NK-R103N X-ray collimator by Newheek is a premium beam limiting device designed for mobile and portable X-ray diagnostic systems with a tube voltage up to 120kV. It precisely restricts the X-ray beam range, reduces stray radiation, and improves diagnostic image quality for on-site radiographic examinations.
This collimator is suitable for mobile or portable X-ray diagnostic equipment rated for a tube voltage of 120kV. It delivers accurate beam control for clinical mobile radiography scenarios.
Key Technical Parameters
X-ray leakage: ＜0.5 mGy/h (120 kV, 4 mA)
Distance from X-ray tube focal spot to collimator mounting surface: 45 mm
Maximum field size: 43 cm × 43 cm (SID = 100 cm)
Minimum field size: ＜3 cm × 3 cm (SID = 100 cm)
Lamp power supply: 24 VAC / 50 VA or 24 VDC / 2 A
Visible light field illuminance: ＞180 lux (SID = 100 cm)
Lamp on delay time (intermittent delay): 30 s
Contrast ratio: ≥ 4:1
Light field alignment (single side): ＜1% @ SID
Inherent filtration: 1 mm Al / 75 kV
Dimensions: 170 mm × 152 mm × 100 mm (L × W × H)
Weight: 2.6 kg
Product Features
This 120kV NK-R103N collimator features excellent radiation shielding performance with low X-ray leakage, meeting strict international radiation safety standards. It supports a wide adjustable radiation field, from tiny 3×3cm up to 43×43cm at SID=100cm, adapting to different body parts imaging requirements.
The built-in light localizer provides high illuminance over 180 lux, with a 30-second lamp delay function, allowing operators to preview the exposure area clearly before X-ray activation. High light-field alignment accuracy ensures the visible light area matches the actual X-ray beam precisely, lowering misalignment risks.
Compact and lightweight at only 2.6kg, the collimator is easy to mount on portable X-ray units. The high contrast ratio guarantees stable and clear light field display even under bright ambient environments.
Benefits
By confining X-ray beam only to the target imaging region, this collimator effectively cuts scattered radiation, reduces radiation exposure for patients and operators, and enhances radiographic image contrast. It is a reliable beam control accessory for portable and mobile X-ray diagnostic systems up to 120kV.
