X Ray Generator 50KW NKG 50R 380AC

Short Description:

General Parameters

Output power: 50kW
Rated supply voltage: 380VAC ±10%, 50/60Hz ±1%; 220V single-phase optional
Output frequency: 40kHz ±1%
Tube voltage accuracy: ±3%
Tube current accuracy: <±4% (ms＞5); <±13% (ms≤5)
Anode speed: 2800r/min
Operating Keyboard: Full touch keyboard
Parameter correction: One-click fully automatic parameter correction

Exposure Parameters

Exposure mode: kV-mA-ms, kV-mAs, APR
Tube voltage range: 40-150kV, 1kV step
Tube current range: 10-640mA
Exposure time range: 1-10000ms
mAs range: 0.1-640mAs
Exposure time accuracy: ≤±5%+0.2ms
mAs accuracy: ≤±5%+0.2mAs
APR storage capacity: 2400 data sets
Auxiliary output power: 24VDC 300mA, 220VAC 5A

Optional Parameters

AEC
- Density adjustment range: -3 ~ +3
- Power supply tolerance: -15V ~ +15V
Communication interface: RS-232
Function customization: Various interfaces can be customized according to customer requirements

Core Advantages of 50kW X-Ray Generator

Stable High-Frequency Output

40kHz high-frequency output ensures steady X-ray beam, effectively reducing image noise and improving the definition of subtle lesions such as tiny bone fractures and pulmonary nodules. Strict control over tube voltage and tube current accuracy eliminates imaging errors caused by unstable power supply.

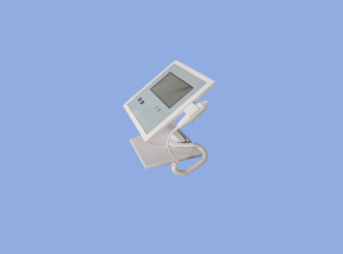

User Friendly Full Touch Control System

The integrated full touch operating keyboard supports three mainstream exposure control modes. The built-in APR function stores up to 2400 groups of pre-set exposure parameters for different body parts, greatly cutting down operation time for radiologists and improving daily examination throughput.

Convenient Automatic Calibration

One-click fully automatic parameter correction function simplifies routine equipment maintenance. Technicians can complete accuracy calibration without complex manual adjustment, lowering equipment downtime and long-term maintenance costs for hospitals.

Wide Adjustable Exposure Range

Wide adjustable tube voltage, tube current and exposure time ranges cover all common clinical radiography scenarios including pediatric radiography, limb fracture imaging, chest radiography and abdominal plain films. The flexible mAs setting range meets diverse diagnostic shooting demands.

Flexible Customization & Optional AEC Function

Support optional AEC automatic exposure control to realize intelligent automatic exposure. RS-232 communication interface is standard, and other types of communication interfaces can be customized on demand to match different DR system integration solutions, compatible with dual column DR, U-arm DR and other digital radiography equipment.

Multiple Power Supply Options

Dual power supply schemes of 380V three-phase and optional 220V single-phase adapt to power supply environments of clinics, community hospitals and large comprehensive hospitals worldwide. The independent auxiliary output power provides stable power support for peripheral detectors and control accessories.

Application Scenarios

This 50kW high frequency X ray generator is widely matched with digital radiography DR systems for physical examination centers, general radiology departments, orthopedic clinics and medical imaging institutions, perfectly matching dual-column DR units and other fixed radiographic equipment. It provides accurate, clear and consistent X-ray imaging for routine chest radiographs, skeletal radiography and general diagnostic radiology work.

E Building, Future Star Innovation Industrial Zone, Weifang, Shandong, China

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

Product Overview

The NKG-50R/380AC 50kW X-Ray Generator is a high-performance digital high voltage power supply specially designed for medical DR radiographic systems. Equipped with a full touch operating keyboard, one-click automatic calibration and complete exposure control modes including kV-mA-ms, kV-mAs and APR, this X ray generator delivers stable, precise and reliable X-ray output for general radiography examinations. With flexible customizable communication interfaces and optional AEC function, it serves as an ideal core power component for dual-column DR, U-arm DR and other stationary digital radiography equipment.
