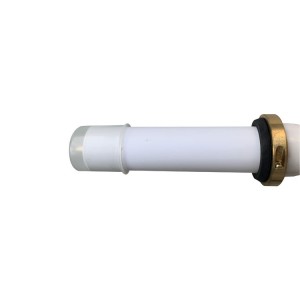

75KV high voltage cable

Short Description:

Medical X-ray machines such as mobile X-ray machine, portable X-ray machine, standard X-ray machine, DR, diagnostic X-ray machine, C arm, U arm, etc. As well as computed tomography (CT) and angiography equipment. Industrial and scientific X-ray equipment or electron beam equipment, such as electron microscopy and X-ray diffraction equipment.

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product name: X-ray high voltage cable
  • Model: NK-75KVDC
  • The rated temperature: 70°
  • Product Detail

    Product Tags

    75KV high voltage cable introduction

    75KV high voltage cable classification
    High voltage cable In large and medium x ray machines, connected with high voltage generator and x ray tube head. The function is to send the high voltage output by the high voltage generator to the two poles of the X-ray tube, and to send the heating voltage of the filament to the filament of the X-ray tube.
    The structure of high voltage cable: according to the arrangement of core lines, there are coaxial (concentric circle type) and non-coaxial (non-concentric circle type)
    Precautions for using 75KV high voltage cable:
    Prevent excessive bending. The bending radius should not be less than 5-8 times of cable diameter, so as not to cause cracks and reduce insulation strength. Usually keep the cable dry and clean, avoid oil, moisture and harmful gas erosion, so as not to rubber aging
    Cable accessories can be ordered separately.
    When the high voltage cable is used, the bending radius should not less than 66mm.

    75KV high voltage cable technical parameters:

    Model The main parameters
    Nominal section: 1.88mm² Material: tinned copper Ground to: to the left
    High voltage insulation
    Diameter: 14.7 ±.3 mm Color: White Material: elastomer
    Color: Grey The material of PVC Thickness: 1.5 ±3 Diameter: 18.5 ±0.5 mm

    Usage Show


    Usage scenario

    Cable sheath appearance should be smooth, uniform diameter, with no joint, bubble, bumps and other undesirable phenomena.
    Weave shield density is not less than 90%.
    The minimum thickness of the cable insulation and sheath must be 85% more than the nominal thickness.
    Insulation between the core and the insulated wire, insulation between the core and the ground cable should be able to withstand the AC 1.5KV and keep 10 minutes can not been broken down.
    Insulation between the core and the shield should be able to withstand the DC 90 KV and keep 15 minutes can not been broken down.
    The plug body should be able to withstand not less than 1000 times fallen off experiments with no damage.
    The surface of each plating should be clean and bright.
    The DC resistance of the conductor and ground cable not more than 11.4 + 5%Ω/m.
    The insulation resistance of the insulation core wire not less than 1000MΩ•Km.
    The cable and each part should meet Rohs 3.0 relative requirement. Brass is below 0.1wt.
    The cable and each part should meet Reach relative requirement.

    Main slogan

    Newheek Image,Clear Damage

    Company Strength

    Original manufacturer of x- ray machine accessories hand switch and foot switch for more than 16 years.

    √ Customers could find all kinds of x-ray machine parts here.

    √ Offer on line technological support.

    √ Promise super product quality with best price and service.

    √ Support the third part inspection before delivery.

    √ Ensure the shortest delivery time

    Packaging & Delivery

    Packing for high voltage cable
    Waterproof carton
    Packing size: 51cm*50cm*14cm
    Gross Weight: 12KG; Net Weight: 10KG
