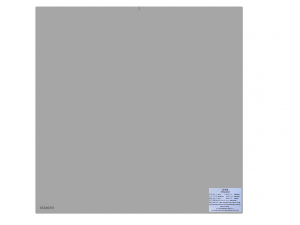

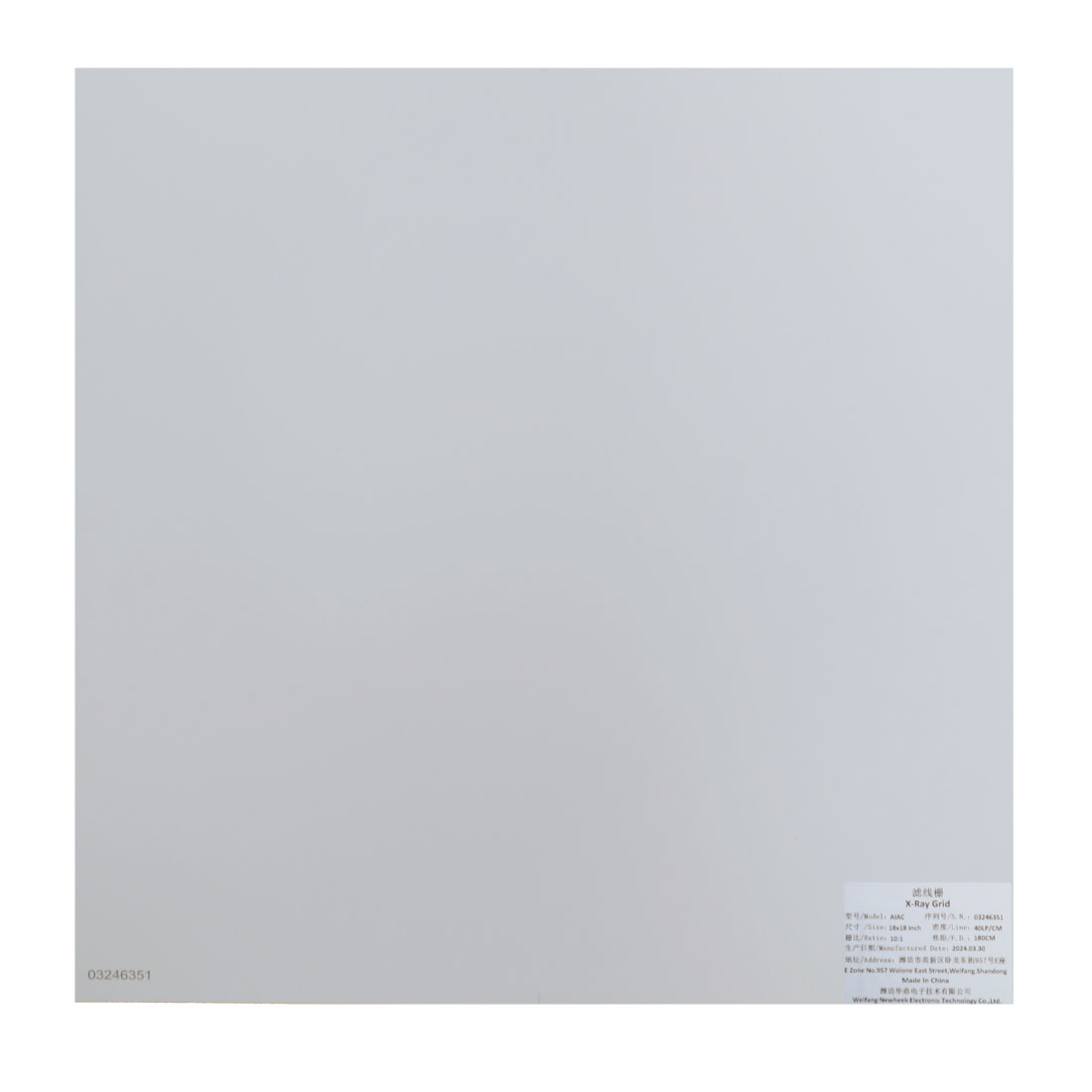

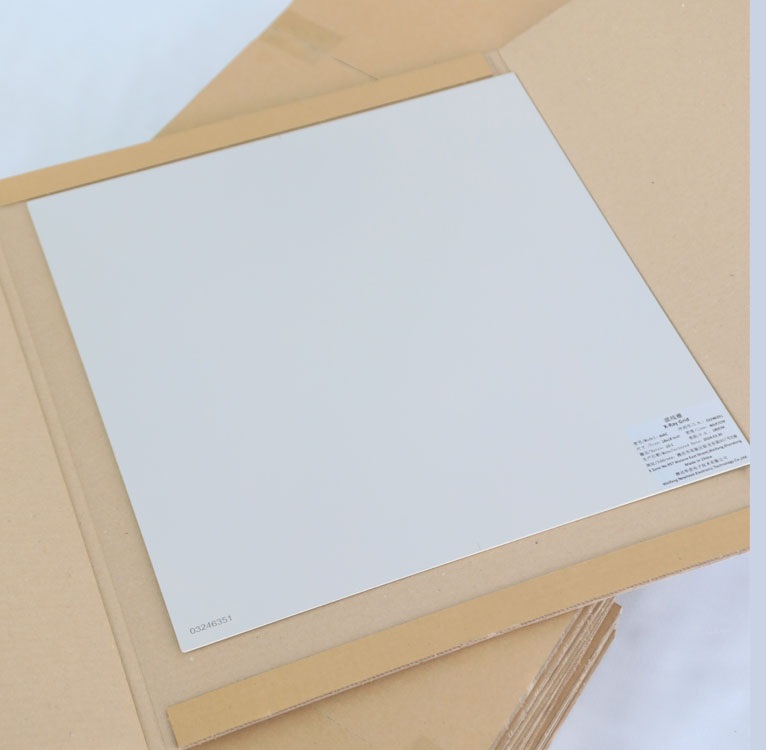

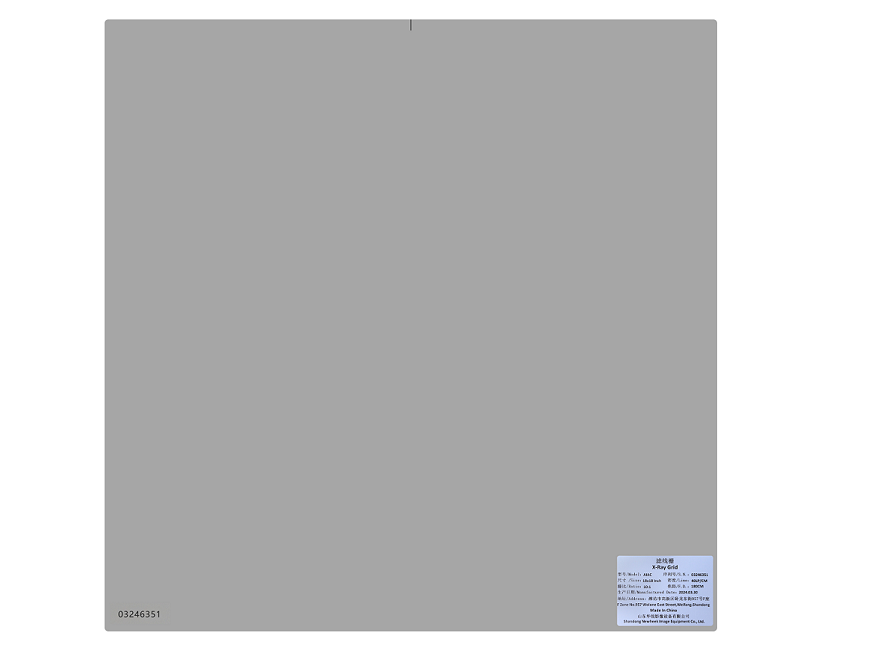

X-ray grid, also known as anti-scatter grid, is an essential accessory for radiographic imaging systems. It effectively filters scattered X-ray photons generated during exposure, improves image contrast, and delivers clearer diagnostic radiographs for human and veterinary X-ray examinations.
Newheek X-ray grids are available in multiple standard sizes, various grid ratios and focal distances to match different detectors and imaging applications.
Available Sizes:
6X8 (15×20 cm)
9X11 (23×28 cm)
11X13 (28×33 cm)
12X15 (30×38 cm)
13X16 (33×40 cm)
15X15 (38×38 cm)
15X18 (38×46 cm)
18X18 (46×46 cm)
Grid Ratio Options: 8:1, 10:1, 12:1, 14:1
Focal Distance (F.D): Focal distance 0.8 m to 2 m is optional for each size.
Each size is designed to fit corresponding photosensitive materials:
6X8(15×20cm): Suitable for 5*7 inch photosensitive materials
9X11(23×28cm): Suitable for 8*10 inch photosensitive materials
11X13(28×33cm): Suitable for 10*12 inch photosensitive materials
12X15(30×38cm): Suitable for 11*14 inch photosensitive materials
13X16(33×40cm): Suitable for 12*15 inch photosensitive materials
15X15(38×38cm): Suitable for 14*14 inch photosensitive materials
15X18(38×46cm): Suitable for 14*17 inch photosensitive materials
18X18(46×46cm): Suitable for 17*17 inch photosensitive materials
Grid Density Selection Conventional grid density options: 40 L/cm (103 L/in), 52 L/cm (132 L/in), 60 L/cm (152 L/in).
Custom service is supported. The size and other parameters of X-ray grid can be customized according to customer requirements.
Working Principle
During X-ray exposure, when the primary X-ray beam penetrates the object, part of the radiation will be scattered. These scattered rays create fog on the image and reduce contrast. The X-ray grid consists of lead absorber strips and interspace filler. Primary X-rays travel along the direction of lead slits and pass through the grid. Scattered rays strike the lead strips and get absorbed. By blocking scatter radiation, the grid greatly boosts image definition for radiographic diagnosis.
Application & Benefits
Newheek X-ray grids are widely used with fixed X-ray machines, portable DR systems, mobile X-ray units and veterinary radiographic equipment.
Improve radiographic image contrast and diagnostic clarity
Multiple standard specifications ready for fast delivery
Optional grid ratio, focal distance and grid density
Custom dimensions and parameters available
Compatible with film cassette and digital flat panel detector
Summary
Newheek X-ray anti-scatter grids offer abundant standard specifications plus custom options to satisfy diverse clinical and veterinary radiography demands. Proper matching of grid size, ratio and focal distance helps radiologists obtain high-quality X-ray images, which makes it a practical and cost-effective accessory for X-ray imaging systems.
