Circular & Handled Anti-Scatter X-ray Grids from Newheek
Short Description:
X-ray grid, also known as anti-scatter grid, is an essential accessory for radiographic imaging systems. It effectively filters scattered X-ray photons generated during exposure, improves image contrast and delivers clearer diagnostic radiographs for human and veterinary X-ray examinations.

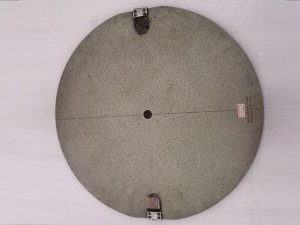

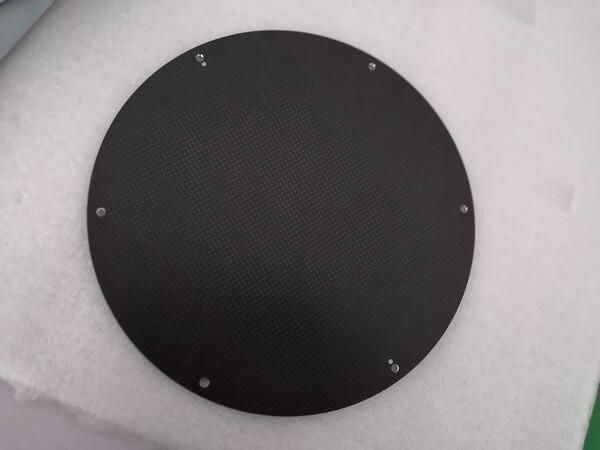

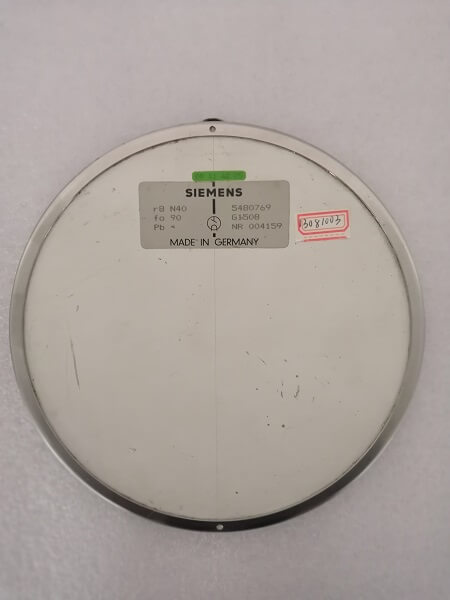

Newheek supplies special anti-scatter X-ray grids, including circular grids tailored for image intensifiers and rectangular grids fitted with hollow handles. These variants are designed to meet the unique structural requirements of fluoroscopy and portable radiographic equipment.
Special customized inch x-ray grid, equipped with hollow handle for easy carrying
Working Principle
During X-ray exposure, when the primary X-ray beam penetrates the object, part of the radiation is scattered. These scattered rays create fog on the image and reduce contrast. The X-ray grid consists of lead absorber strips and interspace filler. Primary X-rays travel along the direction of lead slits and pass through the grid, while scattered rays strike the lead strips and are absorbed. By blocking scatter radiation, the grid greatly boosts image definition for radiographic diagnosis.
Customization Options
The size and other parameters of X-ray grid can be customized according to customer requirements. Conventional grid density options:
40 L/cm (103 L/in)
52 L/cm (132 L/in)
60 L/cm (152 L/in)
Application & Benefits
Newheek custom anti-scatter X-ray grids are widely used for image intensifier fluoroscopy systems, mobile X-ray units and special radiographic equipment.
Suppress scattered radiation and raise radiographic image contrast

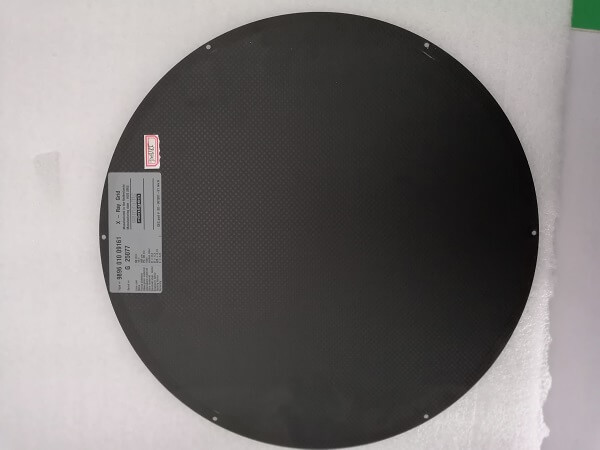

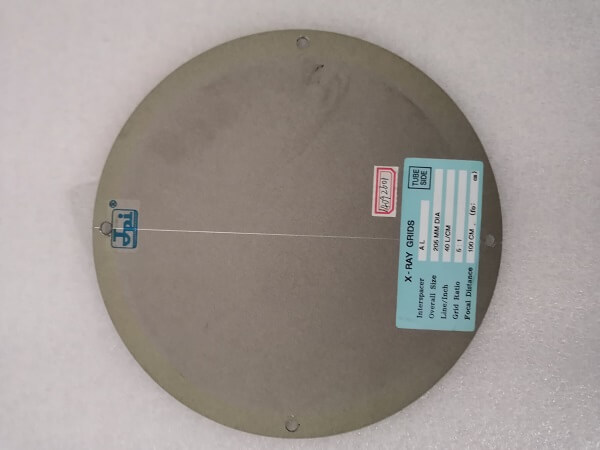

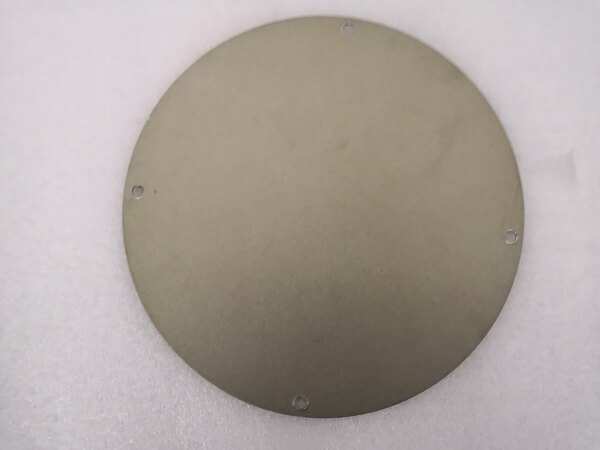

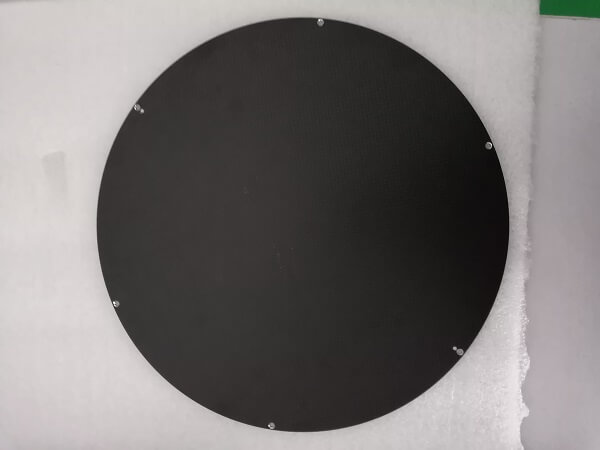

Circular grids perfectly matching 9-inch and 12-inch image intensifiers
Handled rectangular grid for convenient movement and field use
Multiple choices for grid ratio and focal distance
Custom dimensions and parameters supported
Compatible with image intensifiers, film cassettes and digital flat panel detectors
Summary
Newheek special X-ray anti-scatter grids cover circular and handled rectangular forms to fit fluoroscopy and portable radiography setups. Flexible parameter customization makes these grids a reliable accessory choice for medical and veterinary X-ray imaging systems. Matching the right grid specification helps clinicians capture sharp, high-contrast diagnostic images.
