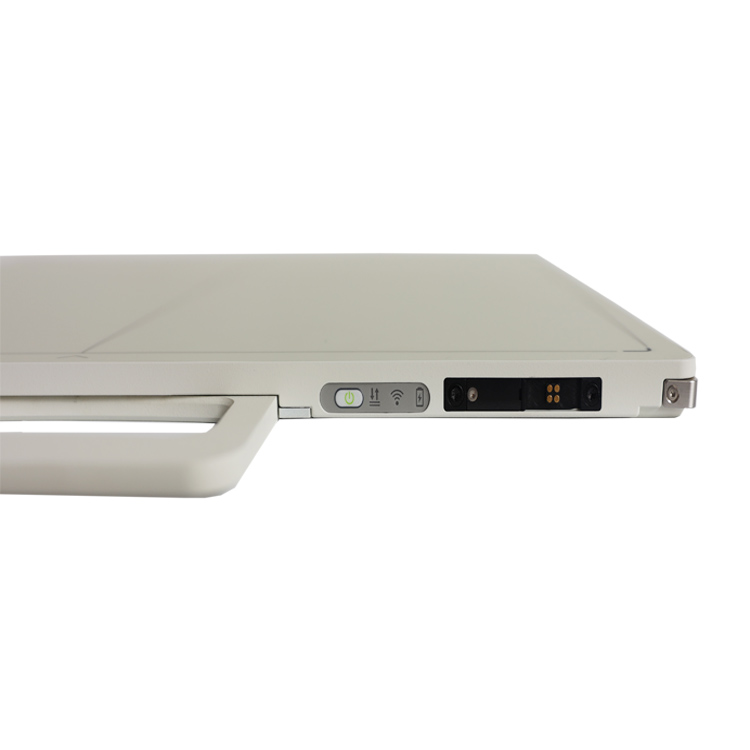

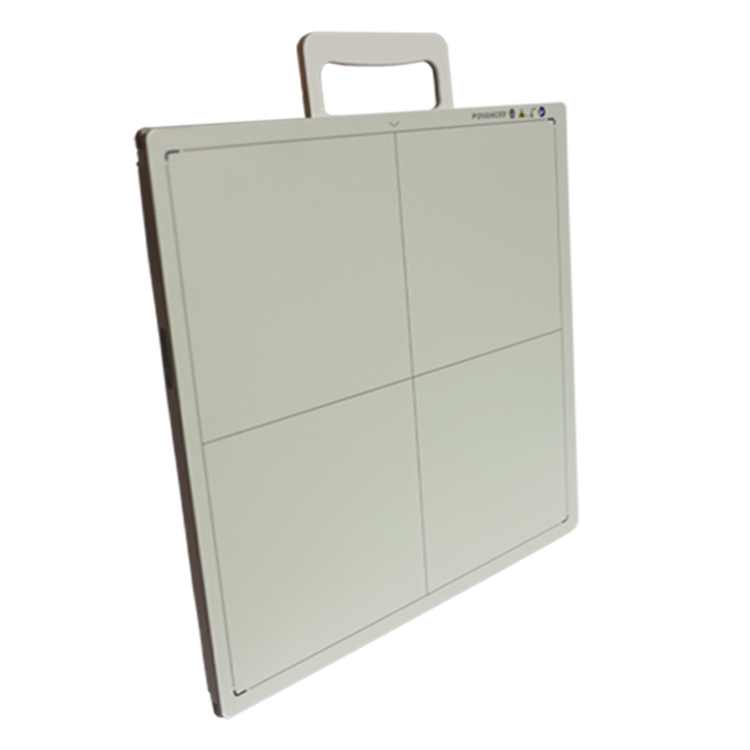

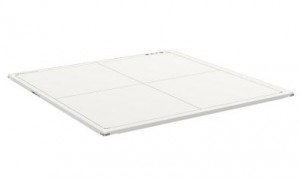

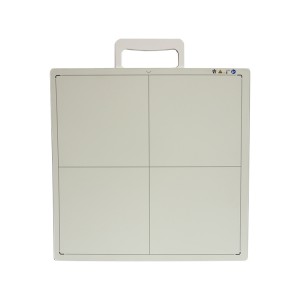

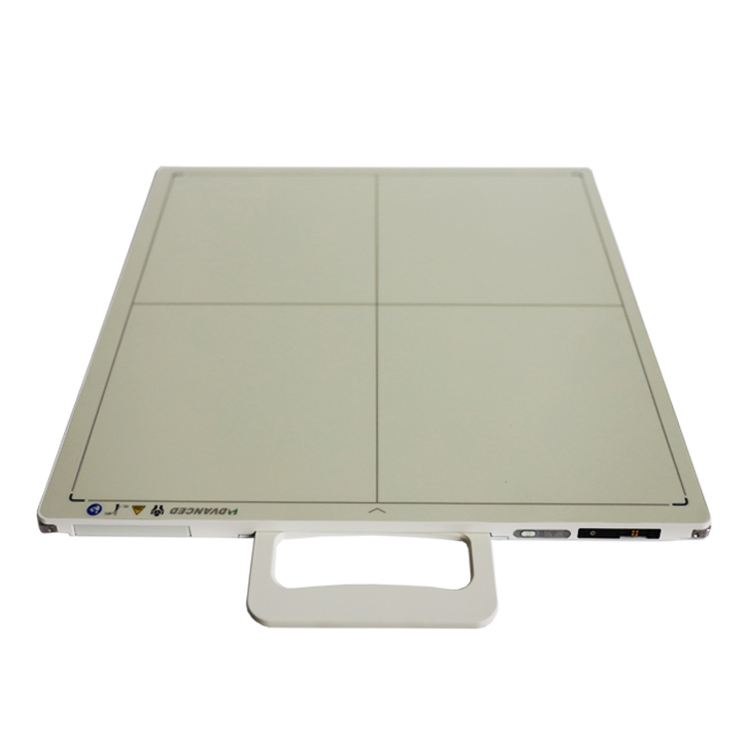

Wireless Cassette NK4343V

Short Description:

NK4343V smart wireless cassette size flat panel detectors, is CsI / GOS based,portable A-Si detector. Reliable iSync+ AED,stable wireless connection,long battery life,high image quality and light weight design,establish NK4343V as the standard of quality in X-ray DR retrofit and system applocation.


  • Brand Name: NEWHEEK
  • Model Number: NK4343V
  • Product Name: X-ray Wireless Cassette 1717
  • Detector Technology: Amorphous Silicon
  • Scintillator: CSI
  • Pixel Pitch: 139μm
  • Spatial Resolution : 3.6Lp/mm
  • Pixels Matrix: 3072x3072
  • AD Conversion: 16bits
  • Product Detail

    Product Tags

    NK4343V smart wireless cassette size flat panel detectors, is CsI / GOS based,portable A-Si detector. Reliable iSync+ AED,stable wireless connection,long battery life,high image quality and light weight design,establish NK4343V as the standard of quality in X-ray DR retrofit and system applocation.
    X-ray Wireless Cassette NK4343V Characteristics:
    Better image quality with lower dose
    Easy installtion and shareable between diverse X-ray systems
    Always charging with backup cable

    Parameters:

    Model

    NK4343Vwireless




     NK4343V

    Detector technology

     a-Si

    Scintillator

    CsI

    Image size

    43 × 43cm

    Pixel matrix

    3072 × 3072

    Pixel pitch

    139µm

    A / D conversion

    16bit

    Spatial resolution

    3.6 LP / mm

    Image acquisition time

    Preview Image(3s);Full Image(5s)

    X-ray voltage range

     40-150 KV

    Battery standby time

    8H

    Data interface

    2.4G and 5G 802.11 a/b/g/n/ac

    Trigger Mode

    AED/Software

    Dimensions

    46 × 46 × 1.5 cm

    Detector Weight

    4.6kg

    Detector Face Load

    150 kg

    Water tightness

    IPX1

    Power Dissipation

    20 W

    Adapter input

    AC 100-240V, 50-60Hz

    Adapter output

    DC 24V

    Detector Protection Material

    Carbon,PC+ABS

    Detector housing materia

    Aluminum Alloy

    Operating Environment

    5-35ºC, 10-90% RH(Non-Condensing

    Product Purpose

    It can replace traditional film and upgrade to a digital imaging system

    Product Scene

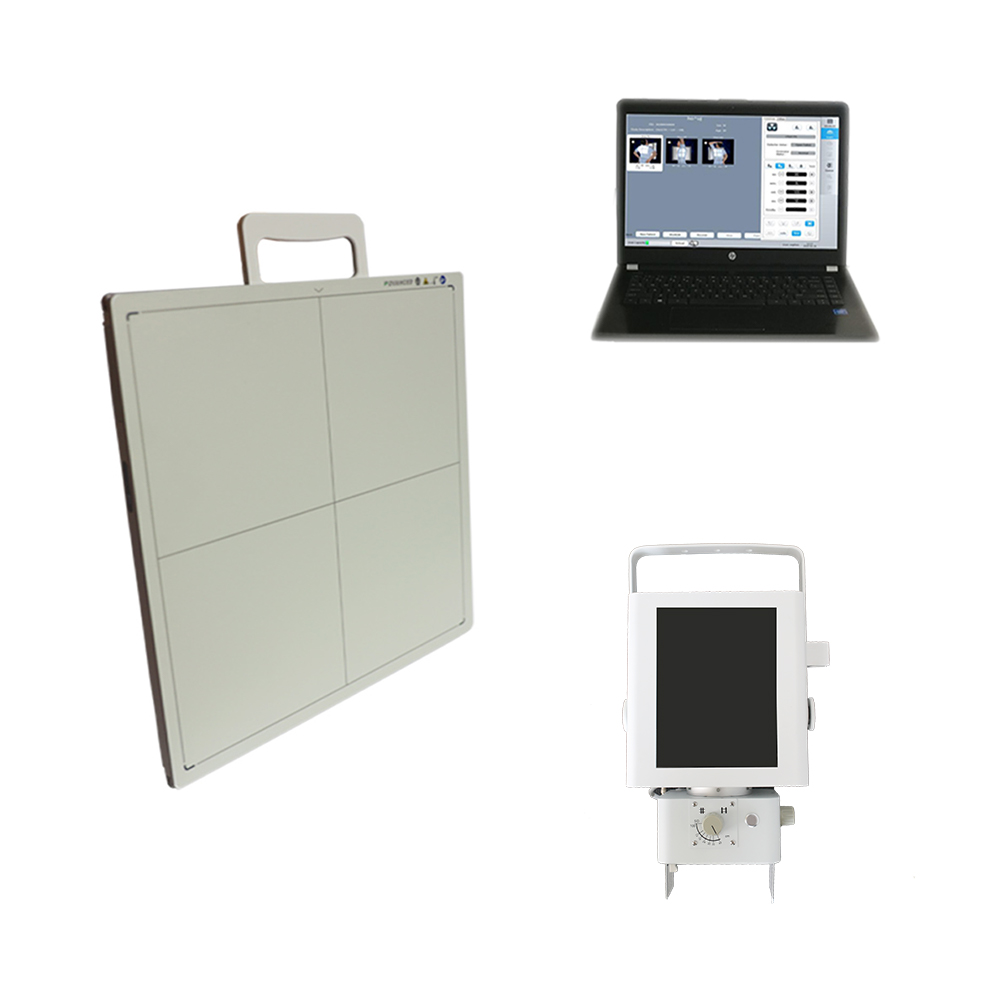

    It can  be used with medical X-ray machines, portable machines, and mobile X-ray machines

    NK3543Z-1

    Main slogan

    Newheek Image,Clear Damage

    Company Strength

    Original manufacturer of image intensifier TV system and x- ray machine accessories for more than 16 years.
    √ Customers could find all kinds of x-ray machine parts here.
    √ Offer on line technological support.
    √ Promise super product quality with best price and service.
    √ Support the third part inspection before delivery.
    √ Ensure the shortest delivery time.

    Packaging & Delivery

    NK3543Z-packing

    Waterproof and shockproof carton

    Detector size: 460 x 460 x 15cm

    Waterproof and shockproof carton

    Certificate

    Certificate1
    Certificate2
    Certificate3
