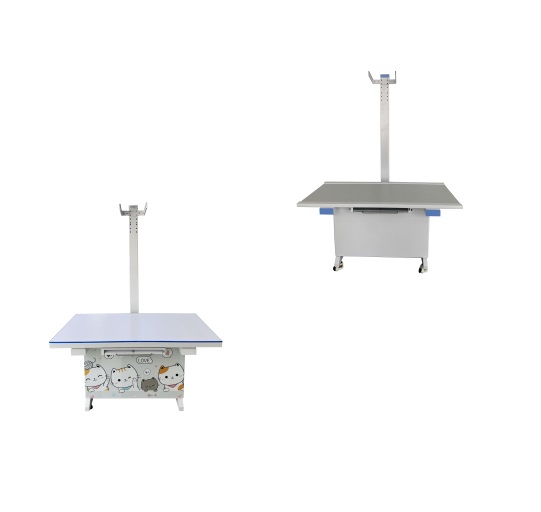

NKPIBS veterinary X‑ray table is specially designed for pet hospitals at all levels. It works cooperatively with veterinary portable X‑ray machines to complete radiographic examination for animals. Multiple optional configurations make it adaptable to diverse clinical demands in veterinary imaging.
FOB Price: US $0.5 - 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month
Table surface material : MDF
Table size : 140cm × 72.5cm
Table height (including wheel height) : 75cm
Table height (not including wheel height) : 65cm
Table height (not including wheel height) : 65cm
Column height : 200‑212cm, 3‑steps adjustment
Overall size : 140cm × 72.5cm × 212cm
Horizontal travel of table surface : 90cm
Longitudinal travel of table surface : 40cm
Distance from the focus of the tube to the grid : 130cm
Box itinerary : 23cm
Distance from the focus of the tube to the table surface : 127cm
Adjustable width for hanging portable devices : 25.3cm‑28cm
Compatible with veterinary portable X‑ray machines, widely applicable for pet hospitals of all levels.
7‑level adjustable height for portable machine mounting position; adjustable width of hanging handle to fit various portable X‑ray units.
Equipped with Fuma casters, supporting both mobile movement and fixed positioning.
Four‑direction floating table surface with electromagnetic locking function.
Supports X‑ray radiography for pets in standing, supine and lateral recumbency positions. It can capture images of head, chest, abdomen, limbs, bones and other body parts.
Optional Configuration Note
Two table‑surface versions are available: flat type and bunk‑rail type.
Fixed feet are supplied as standard; mobile wheels are optional accessories.
