Model L09 Remote Wireless X Ray Exposure Hand Switch is specially designed as supporting accessory for radiography equipment. It is widely compatible with portable X-ray units, mobile X-ray systems, C-arm machines and RF X-ray devices. The complete set includes wireless transmitter, receiver, signal antenna and mounting bracket, supporting two independent exposure working modes to meet different clinical shooting demands.

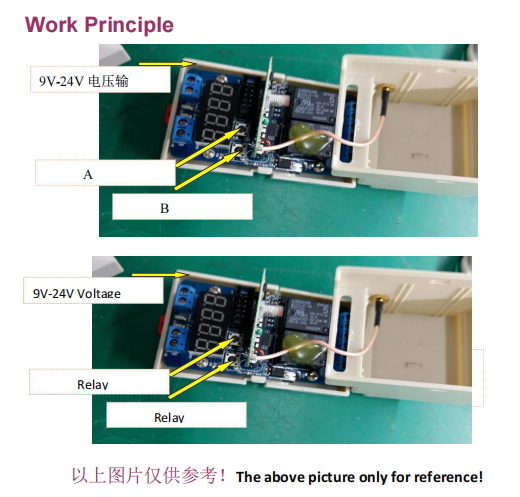

The receiver supports 9V-24V voltage input, equipped with two built-in relays marked A and B. The transmitter has two control keys: ON for exposure trigger and OFF for reset or emergency stop.
1. Auto Exposure Mode
When you press the ON key, relay A connects and a 1~9 seconds adjustable delay timer starts. After the set delay, relay B connects to complete X-ray exposure, while relay A remains connected during the whole timing cycle.
Once exposure finishes, the buzzer will sound intermittent beeps every 1 second as completion reminder. Press the OFF key to stop the beep and reset the system for next exposure cycle. If you press OFF during the delay countdown, the unfinished exposure operation will be canceled immediately.
This mode is ideal for long-distance exposure control, effectively keeping operators away from X-ray radiation hazards.
2. Manual Exposure Mode
Hold down the ON key continuously to maintain the exposure cycle within the preset 1~9s time range. Release the ON key at any time to terminate the exposure instantly.
After exposure completes, the buzzer will send intermittent beeps every 1 second. Press the OFF reset key to mute the alert and prepare for another shooting.
This mode fits short-distance on-site radiography, allowing operators to pause exposure at any moment.
Technical Specification
Input Voltage: 9V-24V
Timing Adjustable Range: 1 second to 9 seconds

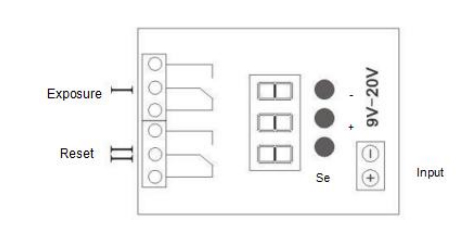

Receiver Output Terminals: Exposure I terminal, Reset II terminal
Core Components: Dual independent control relays (Relay A, Relay B)
Supporting Accessories: Signal receiving antenna, mounting fixing bracket, connecting wire
Product Advantages
Dual-mode exposure design covers both remote long-distance and close-range clinical scenes.
Wireless remote control separates operators from radiation source, greatly reducing X-ray radiation exposure risk.
