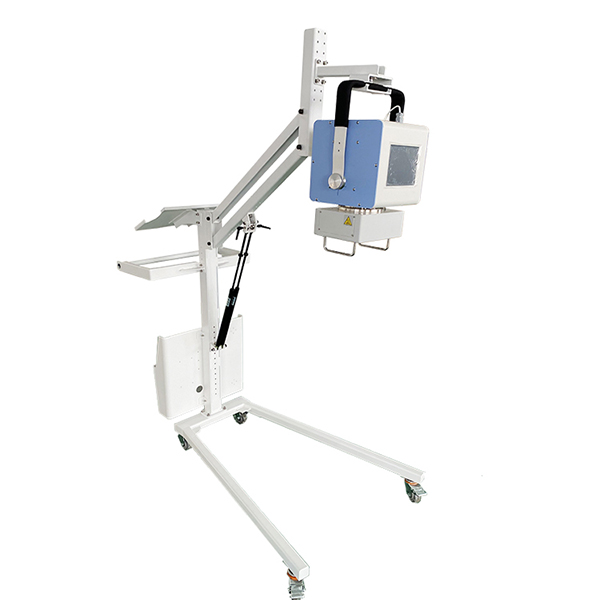

Medical X-ray Portable Machine NK-100YL-TouchScreen

Short Description:

Portable X-ray machine is currently the most widely used filming equipment in the medical field. It has a simple structure, small size and light weight. Individuals can move the filming. The portable DRX-ray machine includes a portable frame and a combined head. The portable frame can The folding support mechanism is used for X-ray photography in special occasions such as field and emergencies, and digital X-ray photography is realized by using a flat panel detector.

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Name: Portable X-ray machine
  • Maximum power: 5KW
  • Exposure time range: 0.01-6.3s
  • Input power type: 220V±10%,50Hz/60Hz
  • Host: 36(long)×26(width)×23(High)
  • Weghit: 21KG
  • Product Detail

    Product Tags

    Product features
    1、It can be widely used in the examination and diagnosis of human limbs, and is suitable for
    medical institutions such as hospitals, clinics, physical examination centers, ambulances, disaster relief,first aid, etc;
    2、Simple structure, small size, light weight, no environmental restrictions, no need to build a leadshielded darkroom;
    3、It is easy to carry and work in dfferent areas and locations, and can be used for X-ray
    photography in the field and special occasions;
    4、Optional mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;
    5、There are three exposure control methods: remote control, hand switch, touch screen
    6、Fault self-protection, slf-diagnosis, high-precision control of tube voltage and tube current:
    7、Produced by high-frequency inverter technology, stable high-voltage output can obtain goodimage quality;
    8、It can be used with the DR flat panel detector to form a DR digital X-ray photography system.

    Power 5kw
    KV range 40KV-110KV
    mA range 100mA、80mA、63mA、50mA、32mA
     mAs range  0.32-315mAS
     Time  0.01-6.3S
     Input power type  220V±10%,50Hz±1Hz
     Dimenison  370(L)×260(W)×230(H)mm
     Weight  21KG
     Applic able scope Human limbs and chest
     Adapt to the scene  Hostpitais ,wards,physicaleaxmination centers and other mrdical institutions

    Product Purpose

    It can be combined with a photographic flat table to form an ordinary X-ray machine for photographic inspection and medical diagnosis.

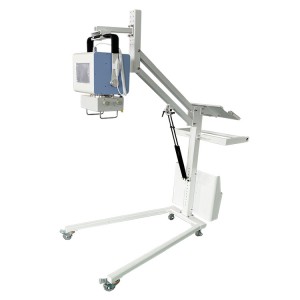

    Product Show

    Main slogan

    Newheek Image,Clear Damage

    Company Strength

    1.Produced by high-frequency inverter technology, stable high-voltage output can get good image quality.
    2.A compact design, easy to carry and work in different regions and locations;
    3.There are three exposure control methods: remote control, hand brake and interface buttons;4. Fault self-diagnosis and self-protection;
    4.With a flexible digital interface,users can go deep into the core programming control and can adapt to different DR detectors.

    Packaging & Delivery

    Waterproof and shockproof carton


    Qingdao ningbo shanghai

    Picture Example:


    Size(L*W*H):61cm*43cm*46cm G.W(kg): 32kg

    Lead Time:


    1 - 10

    11 - 50

    51 - 200


    Est. Time(days)




    To be negotiated
