The main technical parameters:

1. Power conditions and operation mode

Power supply voltage: AC 220V±22V;

Power frequency: 50Hz±0.5Hz;

Power capacity: ≥8KVA;

The maximum allowable internal resistance of the power supply: 1Ω

Operation mode: intermittent loading continuous operation

2. The maximum rated capacity is shown in Table 1

Table 1. Maximum Rated Capacity

Tube current (mA) Tube voltage (kV) Time (s)

15 90 6.3

30 90 6.3

60 90 4.0

100 80 3.2

3. Photography conditions: Tube voltage: 50-90kV

Tube current: 15, 30, 60, 100mA in 4 gears;

Time: 0.08s-6.3s, a total of 19 gears, selected according to the R10′ coefficient.

4. Maximum output power:

( 80kV 100mA 0.1S ) 5.92KVA.

5. Nominal electric power:

( 90kV 60mA 0.1S ) 4.00KVA.

6. Input power: 5.92KVA.

7. Mechanical properties:

When the X-ray generator window is downward, the distance between the focus and the film is 1000mm;

The rotation angle of the X-ray generator around the vertical axis is ±90º;

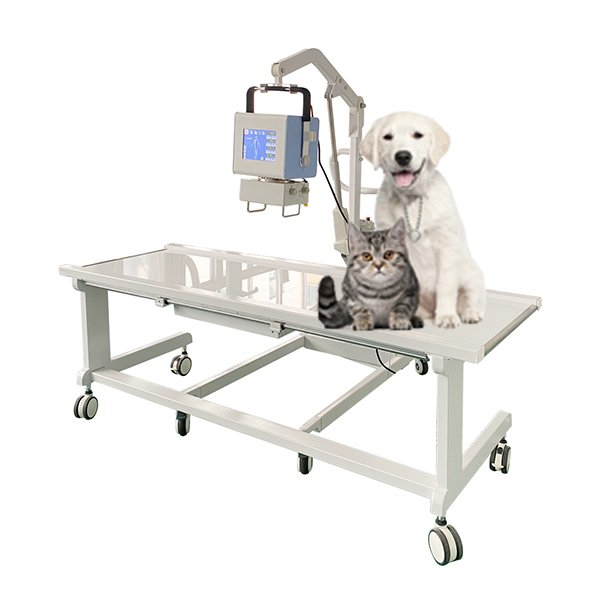

Product Show
