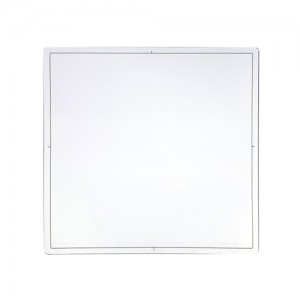

NK3543Z Digital Radiography Wired Cassette
NK3543Zis one kind of high performance tethered X-Ray flat panel detector.
The technology of CsI could obviously reduce the exposure dose and develop the image quality.
And the fast imaging workflow makes it easy for operators to complete the photographing of animals.
It can satisfy both of the general and retrofit Veterinary DR system
NK4343X Innovative a-Si Porttable Detector Components for Veterinary and Medical Use Highlight
Fast imaging workflow
Multiple Trigger Mode
16-bit Convertion
Low Dose
High Quality Image
Parameters:
|
Model |
NK3543Z（wired） |
|
Picture |
 |
|
Detector technology |
a-Si |
|
Scintillator |
CsI |
|
Image size |
35 × 43cm |
|
Pixel matrix |
2560 × 3072 |
|
Pixel pitch |
139µm |
|
A / D conversion |
16bit |
|
Spatial resolution |
3.6 LP / mm |
|
Image acquisition time |
1s |
|
X-ray voltage range |
40-150 KV |
|
Data interface |
GigE |
|
Trigger Mode |
AED/Software |
|
Dimensions |
38.3 × 46 × 1.5 cm |
|
Detector Weight |
2.6kg |
|
Detector Face Load |
300 kg |
|
Water tightness |
IP54 |
|
Power Dissipation |
20 W |
|
Adapter input |
AC 100-240V, 50-60Hz |
|
Adapter output |
DC 24V |
|
Detector Protection Material |
Material:Carbon,PC+ABS |
|
Detector housing materia |
Aluminum Alloy |
|
Operating Environment |
5-35ºC, 10-75% RH(Non-Condensing) |
Product Purpose
It can replace traditional film and upgrade to a digital imaging system
Product Scene

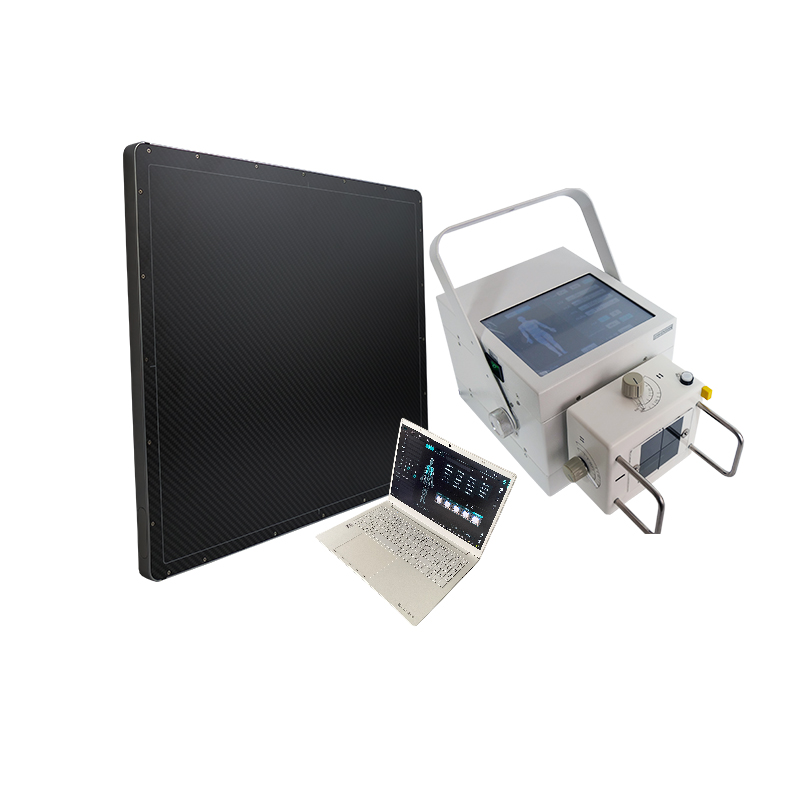

It can be used with medical X-ray machines, portable machines, and mobile X-ray machines
Main slogan
Newheek Image,Clear Damage
Company Strength
Original manufacturer of image intensifier TV system and x- ray machine accessories for more than 16 years.
√ Customers could find all kinds of x-ray machine parts here.
√ Offer on line technological support.
√ Promise super product quality with best price and service.
√ Support the third part inspection before delivery.
√ Ensure the shortest delivery time.

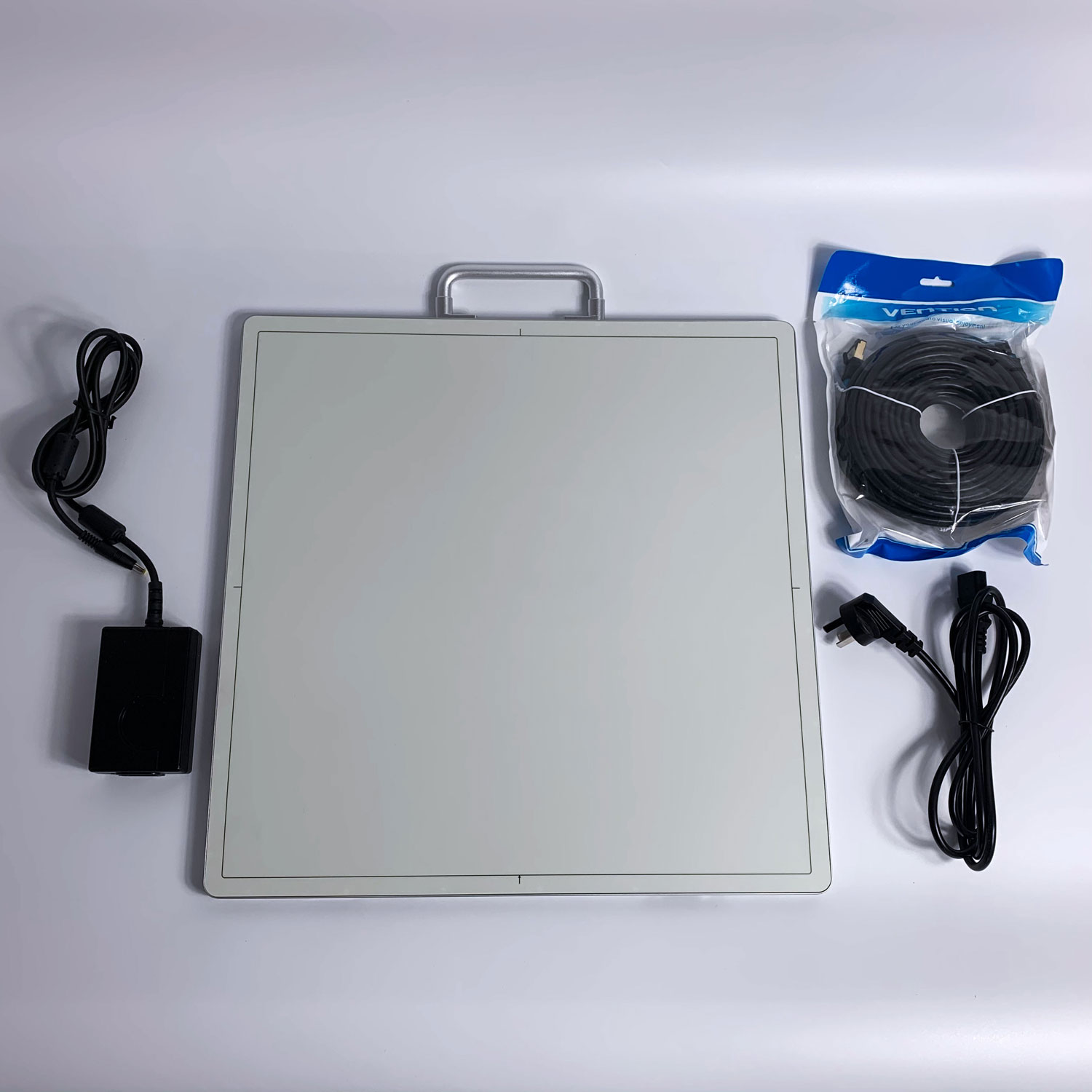

Packaging & Delivery
Waterproof and shockproof carton
Detector size: 460 x 460 x 15cm
Waterproof and shockproof carton
