The “Scavenger” of X-ray Imaging — Medical X-ray Grids

When it comes to diagnostic imaging, clarity is non-negotiable. Blurry, gray images can lead to missed lesions, misdiagnoses, and compromised patient care. That’s where an X-ray grid comes in—a critical tool designed to solve one of the biggest challenges in radiography: scatter radiation. In this guide, we’ll break down exactly what an X-ray grid filters, how it works, and why it’s essential for high-quality imaging.

What Exactly Does an X-Ray Grid Filter?

When X-rays penetrate the human body, they don’t just travel in a straight line. Instead, they interact with bodily tissues to generate a large amount of scatter radiation—radiation that deviates from the normal, intended direction. Think of scatter radiation like stray light in photography: it washes out images, reduces contrast, and can even hide small, critical lesions that doctors need to see.
The core function of an X-ray grid is to filter out this unwanted scatter radiation, allowing only primary radiation (the X-rays that travel directly through the body and reflect true tissue structure) to reach the imaging detector. By eliminating scatter, the grid sharpens image contrast, making it easier for radiologists to accurately detect abnormalities, diagnose conditions, and provide the best possible patient care.

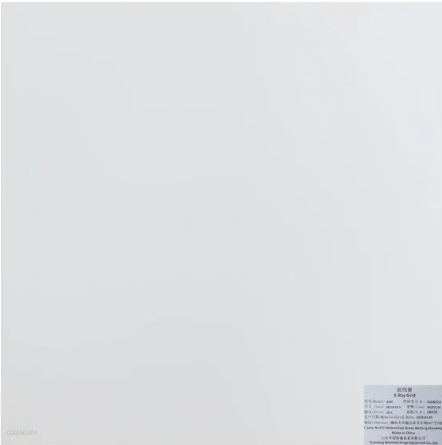

Snipaste_2026-04-22_13-20-25

How Does an X-Ray Grid Work? The “Radiation Sieve” Principle

An X-ray grid is essentially a precisely designed “sieve” for radiation, constructed with two key components: lead strips and filler materials. Here’s a detailed breakdown of its working principle:
  • Lead Strips: Lead is highly effective at absorbing X-rays. These strips are arranged in a regular, uniform pattern, acting as barriers to block scatter radiation.
  • Filler Materials: The gaps between the lead strips are filled with low-X-ray-absorption materials (such as aluminum or wood). These materials don’t block primary radiation but support the lead strips and maintain the grid’s structure.
  • Filtration Process: Chaotic scatter radiation—traveling in random directions—hits the lead strips and is absorbed. Meanwhile, primary radiation, which travels in a straight line aligned with the grid’s gaps, passes through unobstructed to reach the detector. This process ensures image clarity while reducing unnecessary radiation exposure for both patients and operators.

Key Factors That Determine Filtration Effect: Grid Ratio & Grid Density

Not all X-ray grids perform the same—their filtration effectiveness depends on two critical parameters: grid ratio and grid density.
  • Grid Ratio: Defined as the ratio of the lead strip height to the gap width between strips. A higher grid ratio means taller lead strips and narrower gaps, resulting in better scatter filtration. However, higher ratios also absorb some primary radiation, so they must be paired with appropriate X-ray machine parameters (e.g., exposure settings) to maintain image quality.
  • Grid Density: Refers to the number of lead strips per unit length (typically measured in lines per inch or lines per centimeter). A higher grid density means more lead strips packed closely together, further enhancing scatter filtration. Like grid ratio, density must be balanced to avoid over-absorbing primary radiation.

X-Ray Grid Types: Designed for Different Clinical Scenarios

To meet the diverse needs of clinical imaging, X-ray grids are categorized by their lead strip arrangement—each tailored to specific examination scenarios, balancing image quality and efficiency.
  • Parallel Grids: Characterized by lead strips arranged in parallel lines. They have a simple structure, lower cost, and are ideal for imaging thin body parts (e.g., limbs), where scatter radiation is less intense.
  • Focused Grids: Lead strips are angled to converge toward a focal point (aligning with the X-ray tube’s focus). They offer superior scatter filtration compared to parallel grids, making them the standard choice for imaging thick body parts (e.g., chest, abdomen)—the most common use case in radiology departments.

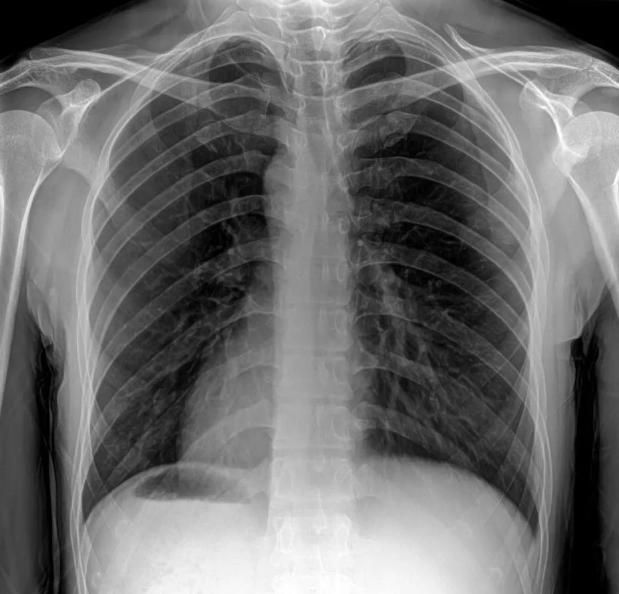

Snipaste_2026-04-22_13-24-00

Huading Electronics: Delivering High-Performance X-Ray Grids for Global Clinicians

At Huading Electronics, we understand the critical role of X-ray grids in diagnostic accuracy. With a focus on imaging equipment localization and years of production and sales experience, we design grids that align with global clinical practices and meet the unique needs of radiologists worldwide.
Our commitment to innovation ensures our grids offer superior performance, easy operation, and enhanced safety for both clinicians and patients. We continuously invest in R&D to refine our products, ensuring they deliver consistent, high-quality filtration—helping radiologists get the clear images they need to provide exceptional patient care.
Whether you’re looking for parallel grids for limb imaging or focused grids for chest and abdominal exams, Huading Electronics has the solution to elevate your radiography practice.
