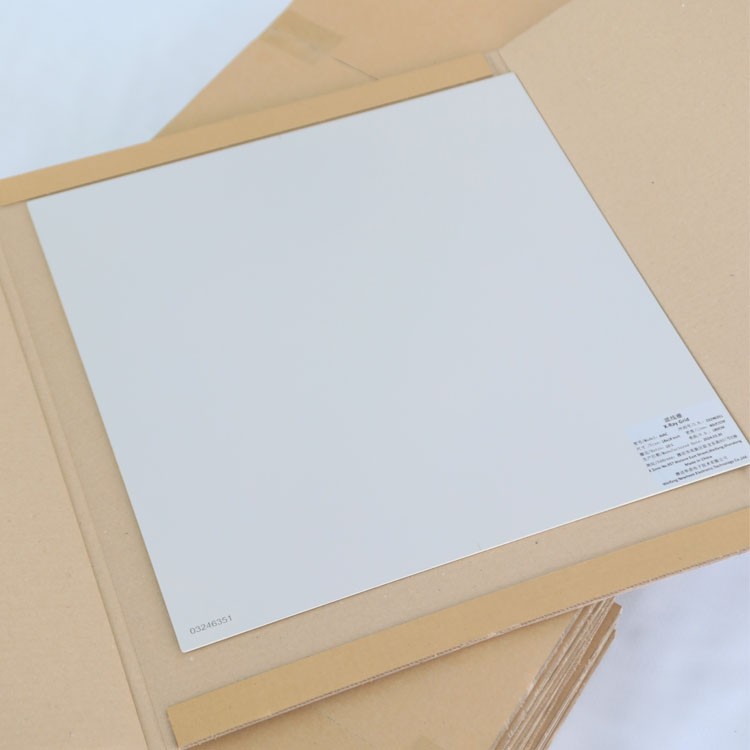

X‑ray anti‑scatter grids are indispensable auxiliary components in radiographic imaging systems. Numerous buyers mistakenly treat industrial radiography X‑ray grids and medical X‑ray grids as interchangeable spare parts due to their similar outer appearance. Although both devices follow identical physical working principles for scattering radiation suppression, they are engineered for completely divergent operating environments, creating major distinctions in core parameters, material build‑up and field‑oriented performance.
The fundamental working mechanism stays consistent for both grid variants. While X‑ray beams pass through human tissue or industrial workpieces, scattered secondary radiation will be generated, which lowers image contrast and blurs fine details. The precisely aligned lead strips inside the grid permit useful primary X‑rays to travel through toward detectors, meanwhile absorbing most disorderly scattered rays. This filtering process restores imaging sharpness. However, radiation energy level, penetration object and exposure cycles differ vastly between medical and non‑destructive testing applications, driving all major design variations.
Medical X‑ray grids are optimized for human anatomical radiography. Human body tissues deliver relatively low X‑ray attenuation thickness. Accordingly, medical grids commonly adopt moderate grid ratios ranging from 8:1 up to 12:1. Their focal distance is calibrated for short source‑image distances applied within hospital DR rooms and mobile bedside units. Raw material selections comply with strict clinical safety standards. The design priority lies in cutting patient radiation dosage and producing stable grayscale for accurate human tissue diagnosis. These grids are widely fitted on stationary radiography equipment and portable medical DR systems.
Industrial radiography X‑ray grids target non‑destructive inspection of thick metal castings, weld seams and heavy components. Industrial NDT procedures require high‑energy X‑rays to penetrate dense metallic materials. Therefore industrial grids are built with higher grid ratios and thicker lead strips to counter intense scattered radiation. They support long‑duration continuous exposure under high radiation output. Focal ranges match large source‑detector distances typical for workshop NDT stations. Reinforced mechanical structures cope with harsh on‑site conditions. Generated images focus on identifying material flaws including cracks, porosity and incomplete fusion rather than organic anatomical structures.
Cross‑application brings tangible operational risks. Mounting medical‑grade grids for industrial flaw detection results in insufficient scatter suppression, grainy noisy images and missed defect identification. Conversely, fitting industrial grids for clinical examinations blocks excessive primary X‑ray beams. Operators have to boost equipment radiation output, raising unnecessary radiation exposure risk for patients.
During component procurement, purchasers must verify critical specifications: grid ratio, focal distance, lead strip density and overall dimension. Visual resemblance cannot justify direct substitution. Confirm whether the intended scenario belongs to clinical medical imaging or industrial non‑destructive testing. Selecting properly‑matched X‑ray grids guarantees reliable imaging outcomes and extends the service lifespan of complete X‑ray inspection systems.
