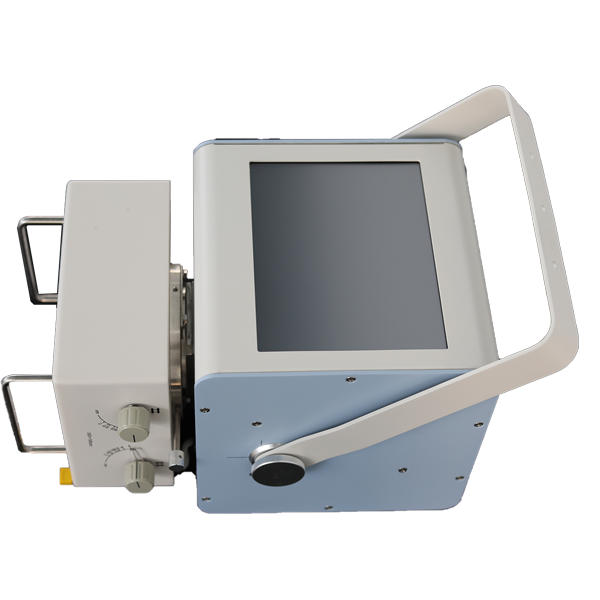

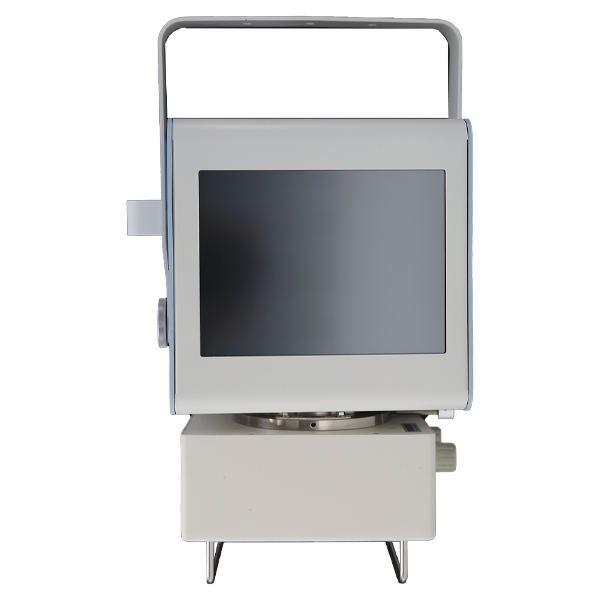

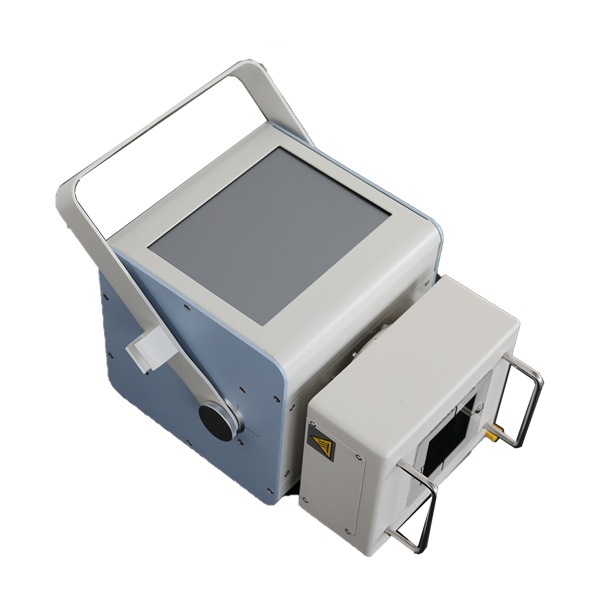

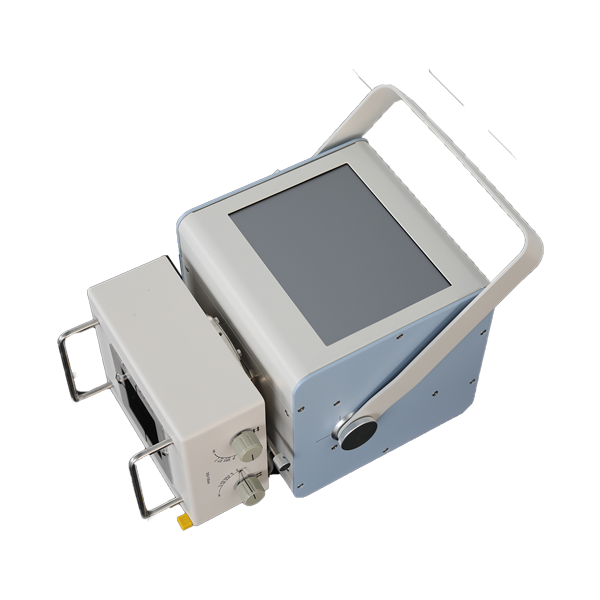

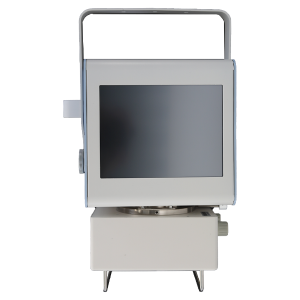

Medical Equipment High Frequency Digital Portable X-ray Machine

Short Description:

Portable X-ray machines are used for capturing images of the limbs, chest, lumbar spine, and other parts of the human body. They are portable, mobile, and lightweight, providing a variety of photography solutions. Dual focus design, multiple language options, standard display touch screen, and rich selection of accessories.

Send email to us

Product Detail

Product Tags

1.It can be widely used in the examination and diagnosis of human limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, disaster relief, first aid, etc;

2.It is easy to carry and work in different areas and locations, and can be used for X-ray photography in the field and special occasions;

Mobile easy stand

Optional mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a
bedside shooting in a hospital ward;

DR flat panel detector

It can be used with the DR flat panel detector to form a DR digital X-ray photography system.

General parameter
Power	5kW
Input power type	220~240VAC
Dimension	265mm(L)x240mm(W)x210mm(H)
Weight	15KG
Communication Interface	RS-232
Technical parameter
kV range	40kV-125kV, 1kV step
mA range	10-100mA
ms range	1 -4000ms
mAs range	0.1-200mAs
maximum power	5.3kW
X-ray focal point value	Small focus:0.6;Big focus:1.8
Maximum tube current of small filament	20mA
Maximum tube current of large filament	100mA
X-ray tube inherent filtration	0.6mmAl
Combination head filter	1.5mmAl

Company Profile

Weifang Newheek Electronic Technology Co., Ltd. (hereinafter referred to as Newheek) is a professional medical equipment supplier integrating R&D and sales of medical equipment, focusing on the field of radiology medical equipment for 22 years. We have established partnerships with dozens of countries around the world. The main products are: x ray hand switch, foot switch, x ray chest bucky stand, x ray mobile radiography table, x ray image intensifier TV system, high voltage power supply, high voltage cable, collimator, U-arm, portable x ray device, mobile DR etc x ray machine machine and components. Newheek is constantly improving and innovating to provide customers with better products and services.

Our Advantages

Top Quality: We have strict quality control system and enjoy good reputation in the market.
Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
OEM Accepted : We Can print your own logo on the products.
Unbeatable Price: We always ensure high price performance to benefit our customers.
Timely Delivery: Your order shall be shipped once finished .
After-Sale Service:All Products Have One Year Warranty.
