Medical collimator NK103 for portable x ray machine

Short Description:

The collimator is an electromechanical optical device installed in the output window of the tube sleeve of the x-ray tube assembly.  Its main function is to control the X-ray beam output field of the X-ray tube to satisfy the X-ray imaging diagnosis and make the projection range.


  • Product name: X ray collimator
  • Brand Name: Newheek
  • Model Number: NK103
  • Power Source: Manual
  • Warranty: 1 Year
  • Material: Metal
  • Shelf Life: 1 years
  • Max exposure field: 440*440mm
  • SID: 1000mm
  • Power: 24V AC/DC
  • Product Detail

    Product Tags

    1.NK103 is a X-ray collimator with continuously adjustable radiation field, which is used on X-ray tube for medical diagnostic with a voltage lower than 125 kV.
    2.It is widely used on different x-ray equipment, such as radiography or fluoroscopy x-ray machine.
    3.It mainly used on portable x ray or mobile x ray machine.
    4.It also can be used on normal radiography x-ray machine.
    5.Minimize, avoid unnecessary doses, and absorb some scattered light to improve image clarity.

    Item Value
    Light Field Average Luminance  >160lux
    Lumination Ratio  >4:1
    Lamp  24V/50W
    Lamp Single Lighting Time  30s
    X-Ray Tube Focus-Mounting Serface Distance mm  40(it can be adjusted according to requirement)
    Shielding Leaves  1 Layer
    Fixed Filtration(75kV)  1mmAL
    Leave Driving Method  Manual
    Input Power  AC24V
    SID Measurement Band Tape  Option
    Leave Aperture Display  Knob Pointer Scale

    Product Application

    1.It is widely used on different x-ray equipment, such as radiography or fluoroscopy x-ray machine.
    2.It mainly used on portable x ray or mobile x ray machine.
    3.It also can be used on normal radiography x-ray machine.

    Product Show

     NK103-1

    Picture of Medical collimator NK103 for portable x ray machine

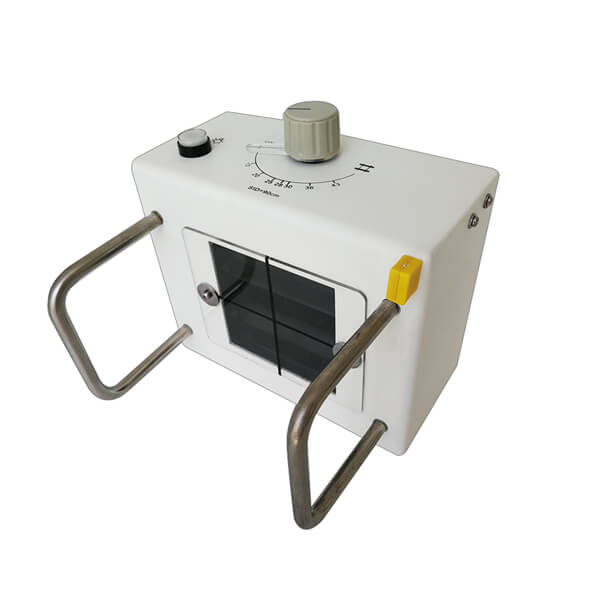

     NK103-2

    Picture of Medical collimator NK103 for portable x ray machine

    Main slogan

    Newheek Image,Clear Damage

    Company Strength

    Original manufacturer of image intensifier TV system and x- ray machine accessories for more than 16 years.
    √ Customers could find all kinds of x-ray machine parts here.
    √ Offer on line technological support.
    √ Promise super product quality with best price and service.
    √ Support the third part inspection before delivery.
    √ Ensure the shortest delivery time.

    Packaging & Delivery

    packing

    Selling Units:Single item
    Single package size: 30X30X28 cm
    Single gross weight:4.000 kg
    Package Type:Waterproof and shockproof carton
    Picture Example:

    Lead Time:

    Quantity(Pieces)

    1 - 20

    21 - 50

    51 - 80

    >80

    Est. Time(days)

    15

    25

    45

    To be negotiated

    Certificate

    Certificate1
    Certificate2
    Certificate3
